EggRider display compatibilityLink

To check compatibility with your bike, complete the EggRider compatibility form.

There are two main things to consider for compatibility:

• Hardware - voltage, connector and pinout compatibility
• Software - communication protocol compatibility

How to find out controller brand?Link

You can find the controller by following the display cable.

The hub motor ebikes mostly have the controller in an aluminum box attached to the frame or integrated in the battery mount or the bike frame.

If you have a hub wheel motor, your controller is most likely Kunteng or Lishui.

If you identified your controller as Kunteng(KT) or Lishui(LSW), keep in mind that there are more types of connectors, not only julet/higo 5 pin waterproof.

Compatibility listLink

Bafang hub motorsLink

Bafang mid drive motorsLink

Bafang mid-drive motors have integrated controllers that are categorized into two types based on their communication protocol

1. UART communication - Compatible ✅
2. CANbus communication
   • EggRider C1 CANbus version - Compatible ✅
   • EggRider V2 - Not Compatible ❌

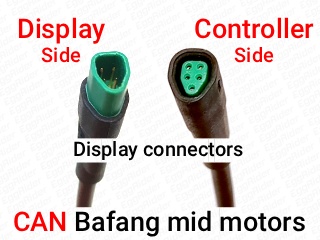

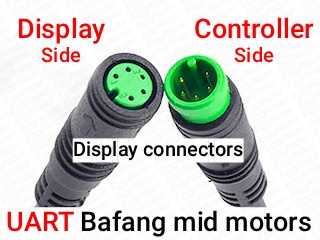

UART Bafang display connector	CANbus Bafang display connector
EggRider C1 - Compatible ✅	EggRider C1 CANbus version - Compatible ✅
EggRider V2 - Compatible ✅	EggRider V2 - Not Compatible ❌

Bafang mid drive ebikes have the controller integrated into the motor and the type is written on the case.

UART Bafang mid motorsLink

• Bafang BBS01 250W 350W 500W 750W
• Bafang BBS02 250W 350W 500W 750W
• Bafang BBS03 BBSHD LUNA 750W 1000W 1500W 2500W Ludacris
• Bafang Ultra M620
• Bafang Ultra 1000W
• Bafang MM G510 1000
• Bafang M600
• Bafang Max
• Bafang MM G320
• Bafang MM G330 250
• Bafang MM G340
• Bafang M300
• Bafang M400

CANbus Bafang mid motorsLink

• Bafang BBS01 CAN
• Bafang BBS02 CAN
• Bafang BBSHD CAN (CR R309.C 7.0)
• Bafang M210
• Bafang M215
• Bafang M315
• Bafang M410
• Bafang M430
• Bafang M500
• Bafang M510 (CR X10N.510.FC.2)
• Bafang M560
• Bafang M615
• Bafang M620
• Bafang M800
• Bafang M820

Bafang hub drive controllersLink

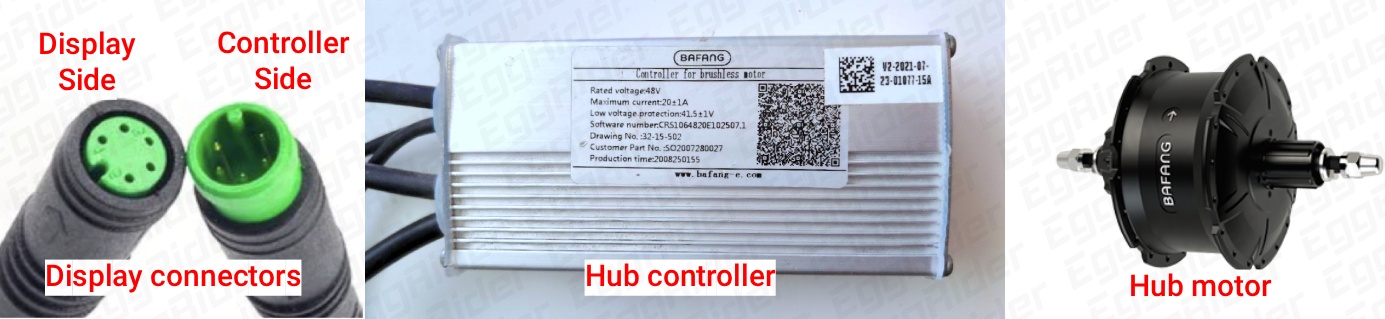

If your hub controller looks like the picture below, has the Bafang logo, and the connectors match, the EggRider display is most likely compatible. You will also have access to the standard Bafang mid-drive system settings.

To confirm, please fill out the EggRider compatibility form.

UART Bafang hub controllers:Link

• Bafang CRS107.1000.SN.U 3.0
• Bafang CRS1064820

Mate bikesLink

Bike compatibility list:

• MATE X 250
• MATE X 250+
• MATE X 750S
• MATE City 250
• MATE X Evo with Bafang CAN controllers and requires EggRider C1 Bafang Mid-Drive (CANbus) version display (please note that settings changes are not accepted by this controller)

Controllers supported:

• Lishui LSW1545-5-2M
• Lishui LSW856-66M
• Lishui LSW856-66-1M

Motors supported:

• Bafang RM G060.750.DC 48V 750W SWX02
• Shengyi DGW25 SY25N4820TA 48V 250W
• Shengyi DGW25 SY254820SJ 48V 500W
• JiaBo CZJB JB-104C2 24V-60V 750W

Replaces the following displays:

• Key-Disp KD51C-D
• Bafang DPC-14 / 850C 3.2-inch MATE-customized TFT LCD color display
• Ukriver UKC1 / UK-CT-18 / UKCT-18 3.5-inch MATE-customized TFT LCD color display

RadPower bikesLink

EggRider offers 2 different versions for RadPower bikes.

If you are unable to find your specific bike model in the Rad and Radv2 lists below, please complete EggRider compatibility form.

RadLink

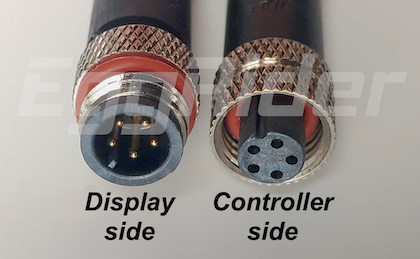

Compatible RadPower bikes feature a 5-pin screw connector for the display as shown below and use a Lishui controller;

EggRider Rad compatible with the following models:

• RadExpand 5
• RadCity 1/2/3/4
• RadMini 1/2/3/4
• RadMission 1
• RadRhino 1/5
• RadRover 1/2/3/4/5
• RadRunner 1/1 Plus/2
• RadWagon 1/2/3/4

Radv2Link

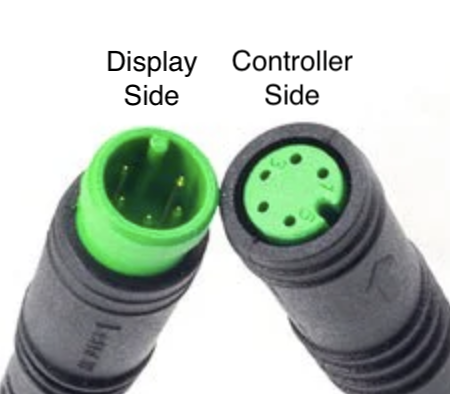

Compatible RadPower bikes that use ASI controller and feature 5-pin julet connector for display as shown below:

EggRider Radv2 is compatible with the following models:

• RadCity 5 Plus
• RadRhino 6 Plus
• RadRover 6 Plus
• RadRunner 3 Plus
• RadTrike 1

Urban Drivestyle bikesLink

Compatible Urban Drivestyle bikes:

• Unimoke V4
• Unimoke V5
• Unimoke V6

CoastCycles bikes:Link

Compatible bikes:

• Buzzraw
• Buzzraw X

Lishui (LSW) controllersLink

Lishui has different models of controllers. Some of them are compatible, some are not. It is important to provide us with the code on the controller so we can make a list of compatible controllers.

Accelerated Systems ControllersLink

ASI controllers are compatible with EggRider V2 and C1 displays if you have access to Bacdoor app. Please provide us picture with your display cable, battery voltage and controller model.

Please read our dedicated page for more information

• ASI BAC 300
• ASI BAC 500
• ASI BAC 800
• ASI BAC 355
• ASI BAC 555
• ASI BAC 855
• ASI BAC 4000
• ASI BAC 8000

CYC MotorLink

CYC motors that use ASI controllers are compatible.

Compatible versions

• CYC motor X1 Pro Gen 2 with controller ASI BAC855 or BAC2000
• CYC motor X1 Stealth with controller ASI BAC855

Grin Technologies controllersLink

Grin Technologies controllers are built on ASI controllers, so EggRider V2 and C1 displays work with them in the same way as with an ASI controller. You set up the controller with Grin's Phaserunner Suite software, so you don't need the Bacdoor app.

Compatible controllers:

• Grin V6 Baserunner_Z9
• Grin V6 Baserunner_L10
• Grin V6 Phaserunner_L10
• Grin V6 Phaserunner_MT

If you have another Grin controller or harness, or you aren't sure, complete the EggRider compatibility form and include a picture of your harness pinout.

Kunteng (KT) ControllerLink

Ride1Up bikesLink

Bike compatibility list:

• Ride1UP Roadster v2

Controllers supported:

• LD-FZ-106

Other compatible bikesLink

• Aostirmotor S07-B
• Voltbike Yukon 750 Limited
• Mycle Cargo Electric Bike

Other systemsLink

If you are still unsure and would like us to check compatibility, please complete EggRider compatibility form.

• bike brand
• bike model
• year of manufacture

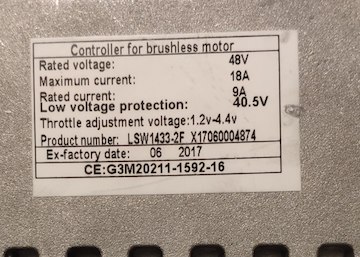

• picture of controller label

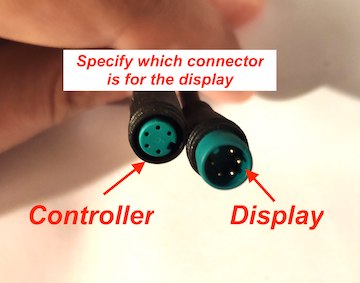

• picture of display connector - display side
• picture of display connector - controller side

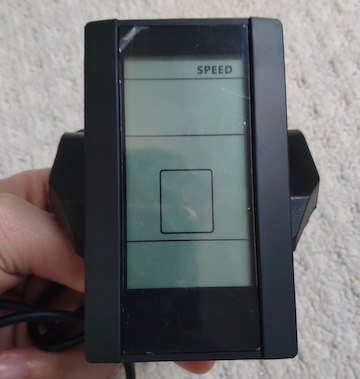

• picture of display

See the example pictures below.

Controller label	Display connector	Display

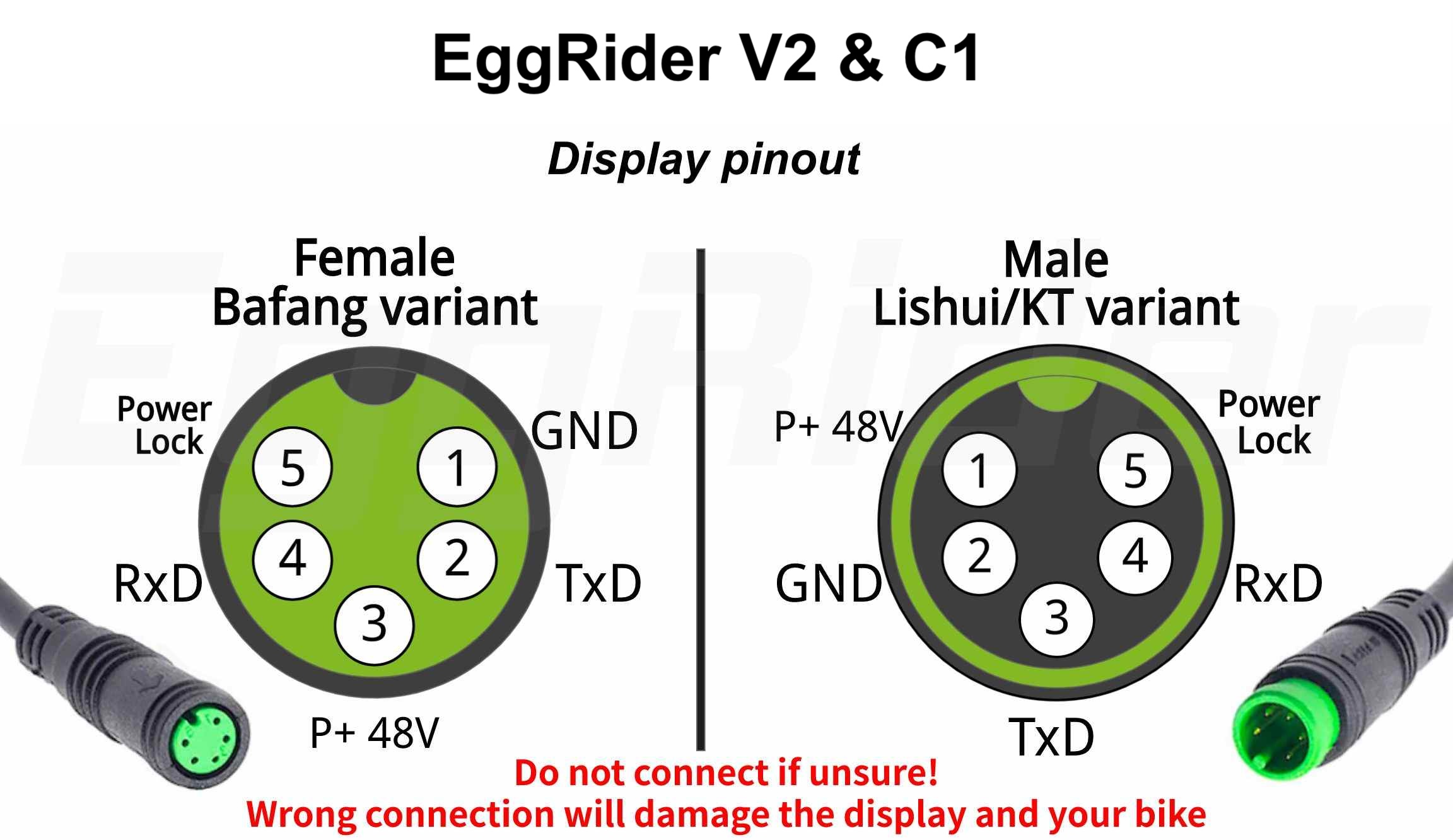

EggRider V2 & C1 PinoutLink
