EggRider C1 Colour DisplayLink

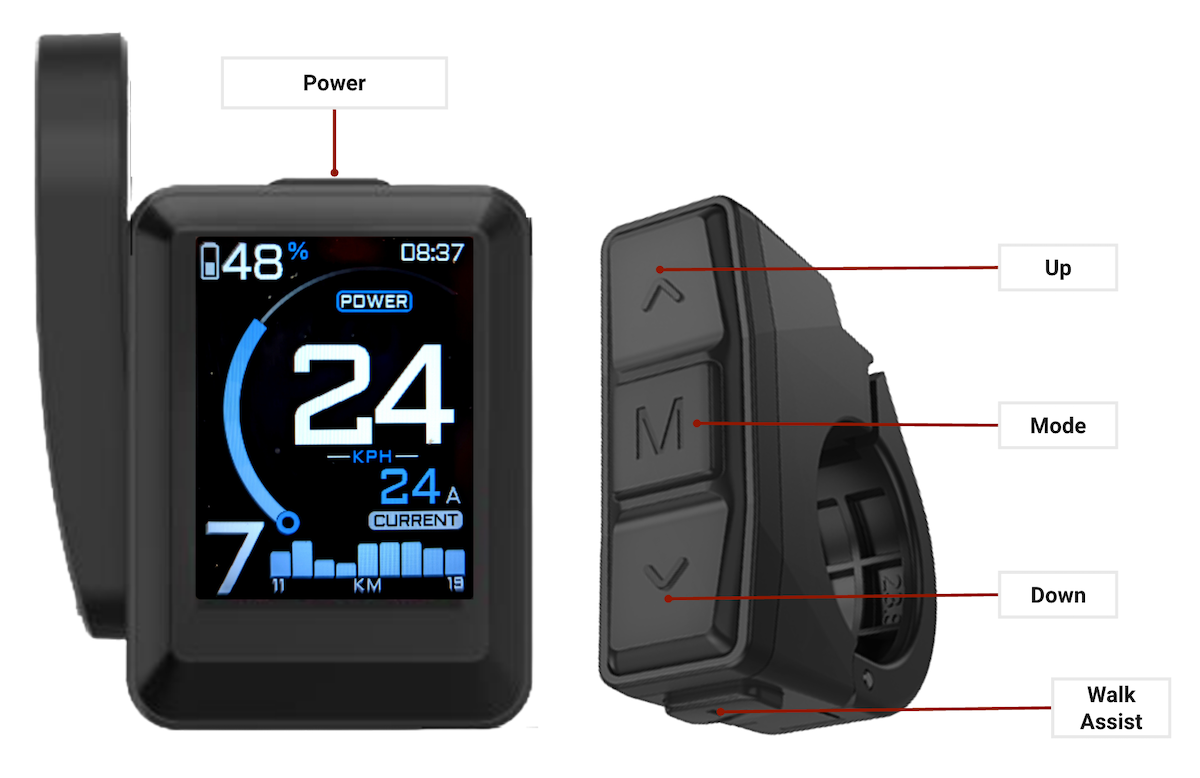

ButtonsLink
Button FunctionsLink
Buttons functionality is determined by the duration of the press:
- Short press less than 1.5 seconds
- Medium press between 1.5 and 3 seconds
- Long press more than 3 seconds
Power On/OffLink
Power short press
Increase Assist LevelLink
Up short press on main screen
Decrease Assist LevelLink
Down short press on main screen
Dynamic MenuLink
M short press - Cycle through dynamic values options: current max, power max, range, average efficiency, battery, trip and rider max (if available)
Walk AssistLink
Walk Assist continuously - Helps the motor push the bike while walking
M Button FunctionsLink
On Main screen:
- M short press - Cycle through dynamic menu options
- M medium press - View stats screen (trip data)
- M long press - Toggle Road/OffRoad modes (cycles through stats screen back to main)
On Stats screen:
- M short press - Cycle through stats pages (Trip, ODO, Motor, Battery, Rider, Software)
- M long press - Returns to main screen
Activate HeadlightLink
Down long press - Activate headlight, keep holding to toggle display brightness
Adjust BrightnessLink
Down continuously - Cycles through display brithtness Auto, High, Low
Toggle Arc Graph ParameterLink
Up long press - Toggle parameter shown in the arc graph. Keep holding to cycle through available parameters: power, voltage, battery, speed and rider (if available)
Update Firmware ModeLink
When the display is OFF press and hold Up+Power until display turns ON
Reset Display To Factory SettingsLink
Resets only the display settings. Bafang also stores settings in the controller and they will not be affected.
When display is OFF press and hold M+Power until the display turns ON
Reset TripLink
Down long press with stats screen on
Change Selected BatteryLink
Up long press with stats screen on - Keep repeating until the desired battery profile is shown
Save settings
Changes made to the dynamic menu and selected parameters in the arc graph on the main menu are not saved. Consequently, upon powering off your Eggrider, these settings will revert to default values
However, adjustments to the battery profile, mode selection, assist levels, odometer, and trip data are retained. To save it, please shut down the EggRider from Power button. If the power supply is cut before pressing the Power button, the data is not saved into the permanent memory.
EggRider C1 display screensLink
The EggRider C1 display offers a streamlined, one-screen solution, allowing you to seamlessly navigate between different pieces of information on the same screen with just one click of M button.
Note
With EggRider C1, only the mainscreen layout V3 is available; other layouts are not supported.

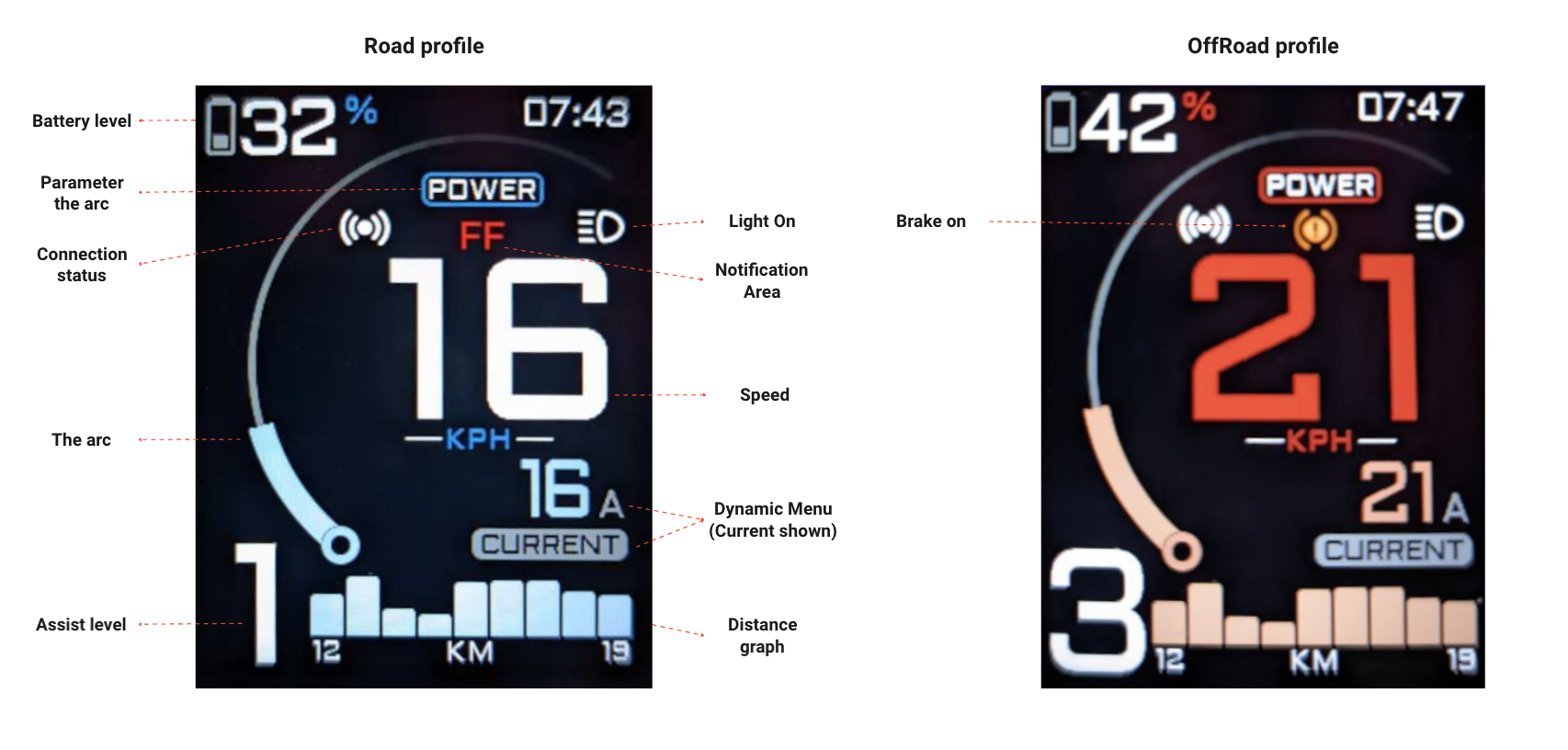

Main screen contentLink
- Battery % - Battery percentage
- Time - Showing time of the day
- Dynamic menu - Shows different parameters by pressing M (in the example "current" chosen)
- Connection status - The mobile app is connected
- Riding profile - Chosen riding profile is indicated by colour theme. Blue colour theme indicates Road/Eco where as red indicates OffRoad/Sport
- Light - The headlight is switched on
- Lock - The bike is locked
- Assist Level - The assist level that the motor provides
- Distance graph - Travel distance from the ride starts to EggRider is shut. By default, the animation will be displayed (because we are fun!). Values are shown after riding your bike 1km (equivalent of 0.6mi)
Stats Screen LayoutsLink
| Trip | ODO | Motor |
|---|---|---|
 |  |  |
| Battery | Rider* | Software |
|---|---|---|
 |  |  |
Stats Screen ContentLink

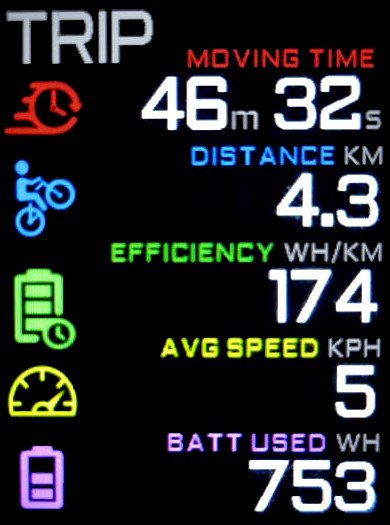

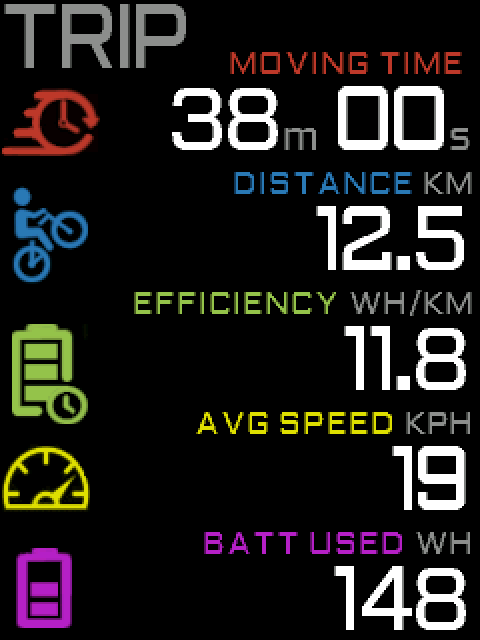

TripLink
Shows trip data accumulated since the last reset. The trip can be reset manually or automatically at startup, a setting adjustable through display settings.
Note
If the Reset trip -> At start-up, trip data will be reset only after the bike starts moving. This is to allow downloading the past trip data via the mobile app.
- Moving time - The time when speed > 0 value in hours, minutes, seconds
- Distance - Travelled distance for the current trip
- Efficiency - Efficiency since the last restart, lower value gives longer range
- Avg Speed - Average speed
- Battery used - Estimation of the full battery capacity, which depends heavily on current accuracy. Shown after a certain time or distance has been traveled.

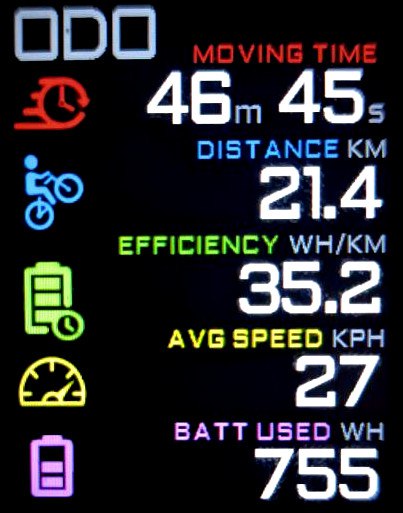

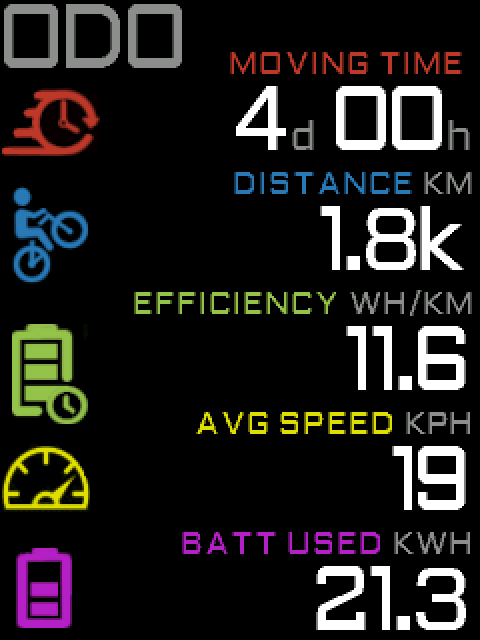

ODOLink
It shows life time trip data. It can be treated as the accumulated trip data.
- Moving time - The total duration during which the bike was moving (speed > 0), displayed in hours, minutes, and seconds
- Distance - Total travelled distance
- Efficiency Average efficiency calculated based on the accumulated trip data so far
- Avg Speed - Average speed calculated based on the accumulated values so far
- Battery used - Full battery capacity estimation, takes 10+ trips into an account

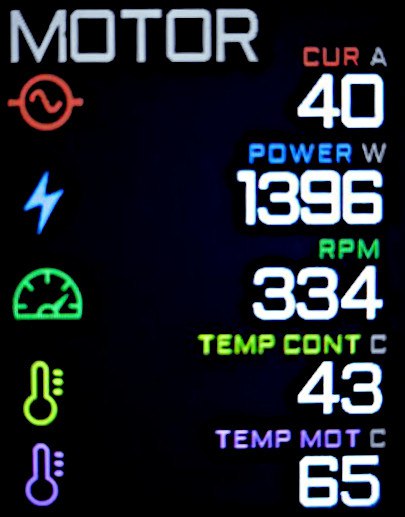

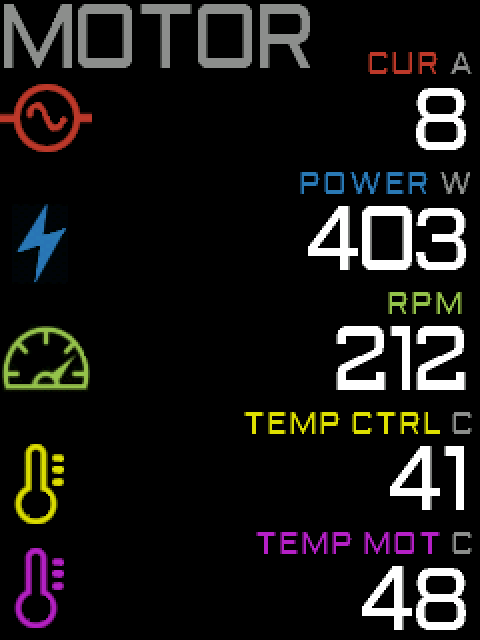

MotorLink
- Current - The electric current being used by the motor, measured in amperes (A)
- Power - The power output of the motor, measured in watts (W)
- RPM - Pedaling cadence or the motor's RPM if available
- Temp Cont - Controller temperature if available
- Temp Mot - Motor temperature if available
Note
Temperature values will only be displayed if the motor or controller provides this information. If the information is unavailable, the values will be shown as 'Zero'.

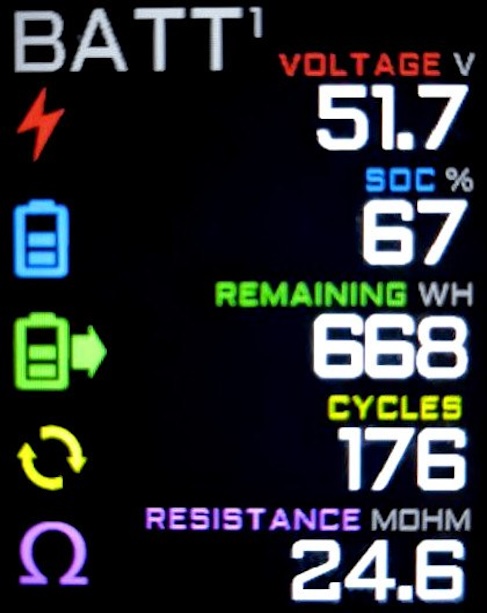

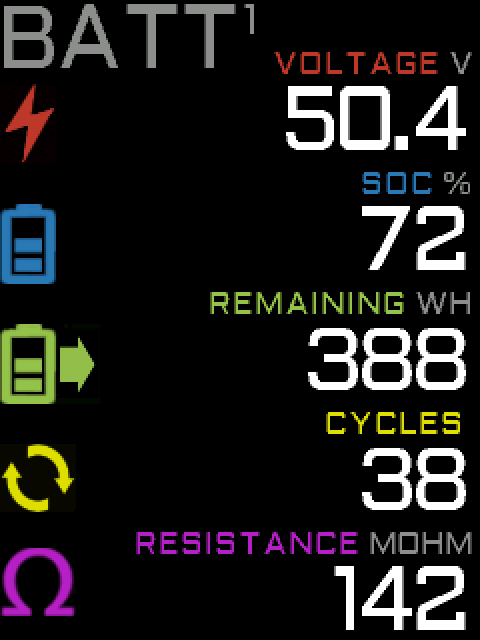

BatteryLink
With EggRider displays, you can set up 3 different battery profiles. The superscripted number displayed indicates which profile you are currently using, and the data shown below is related to that profile.
- Voltage - Voltage
- SOC% - The percentage of battery capacity that is currently available
- Remaining - The remaining energy in the battery, measured in ampere-hours (Ah)
- Cycles - The number of battery cycles, estimating how many times the battery has been fully charged. This calculation is based on the declared capacity of the battery.
- Resistance - Battery series resistance, measured in milliohms (mΩ), calculated over the past hour or so. Lower values indicate a healthier battery with better performance, while higher values may suggest wear or inefficiency

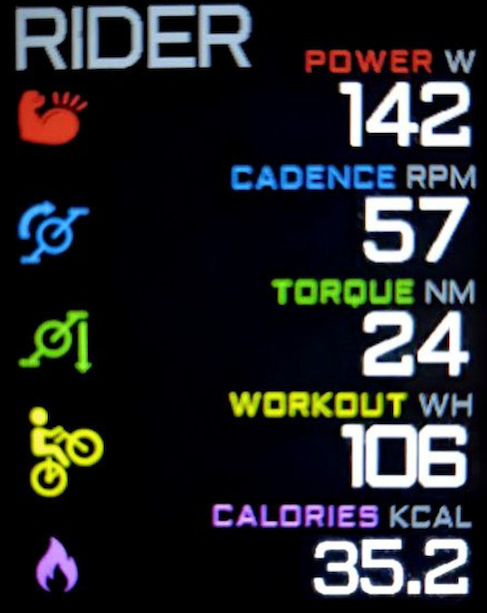

RiderLink
* This screen is only visible if bike has a torque.
- Power - Human power being applied to the bike's pedals or crankset
- Cadence - The speed at which a cyclist is pedaling
- Torque - The rotational force applied to the pedals by the rider
- Workout - The cumulative or total energy expended over a period of time, calculated by summing up all the instantaneous powers
- Calories - Calories spent so far

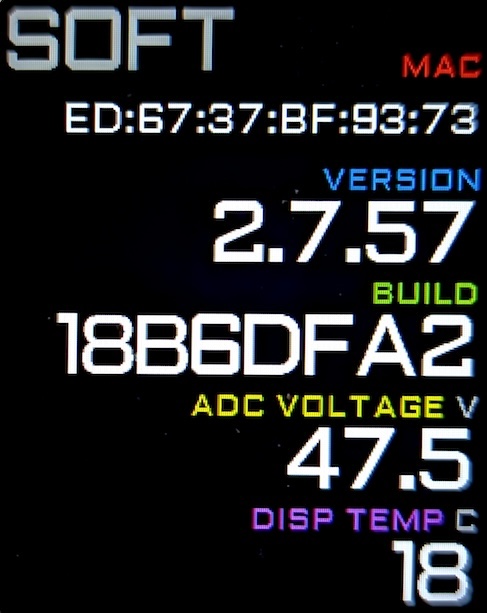

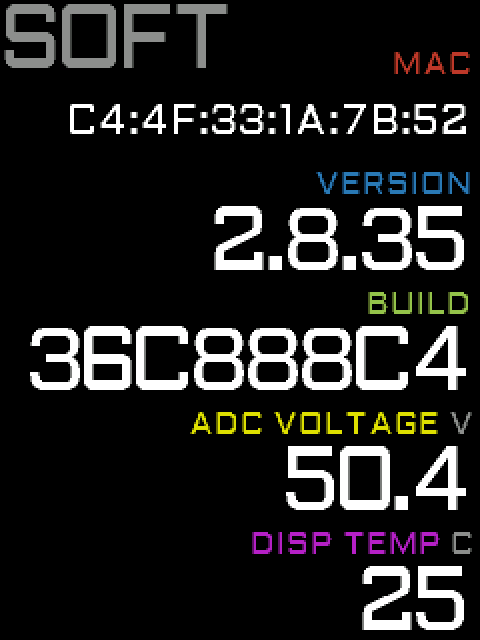

SoftLink
- MAC - EggRider device ID
- Version - Firmware version
- Build - Firmware build number
- ADC Voltage - Display voltage, the electrical voltage powering the display. If the voltage is too low or fluctuates significantly, it may indicate issues with the power supply or the display’s performance
- Disp Temp - Display temperature
