EggRider V2 Mate X settingsLink

Accessible from menu Lishui

All mate X version have Lishui controllers. For information about each setting option please consult the Lishui settings page

Attention

If speed shows --.- km/h on EggRider display, please reset to default factory settings with the following procedure When the display is off, press M+Power until display turns on. (You should see Load default settings)

Important

If you received your display with an adapter please make sure it is connected correctly.
Wrong connection can damage the display and the bike.

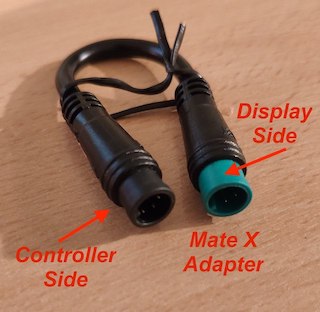

EggRider V2 display Bafang to Mate X adapter

Please check:

Settings exampleLink

Attention

Make sure to change Current limit according to your controller parameters. Usually they can be found on the controller label.

If you want to increase the speed limit above 41 km/h, you can change wheel size to 16" on the Lishui settings page. This change will affect all speed limits.

If speed measurements don't seem to be correct, please use wheel circumference from Display settings page to adjust.

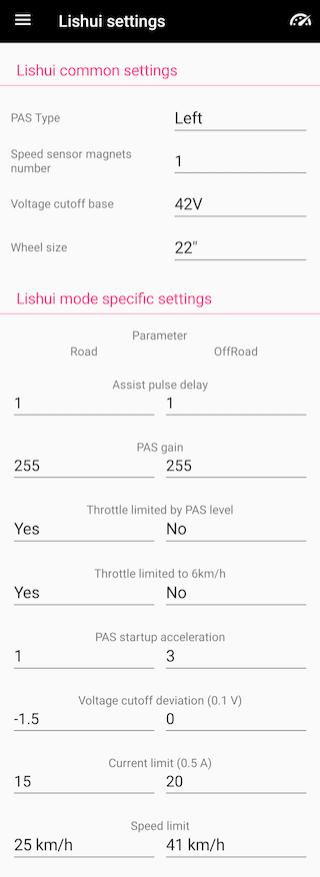

Mate X 750W Taiwan versionLink

Display Lishui

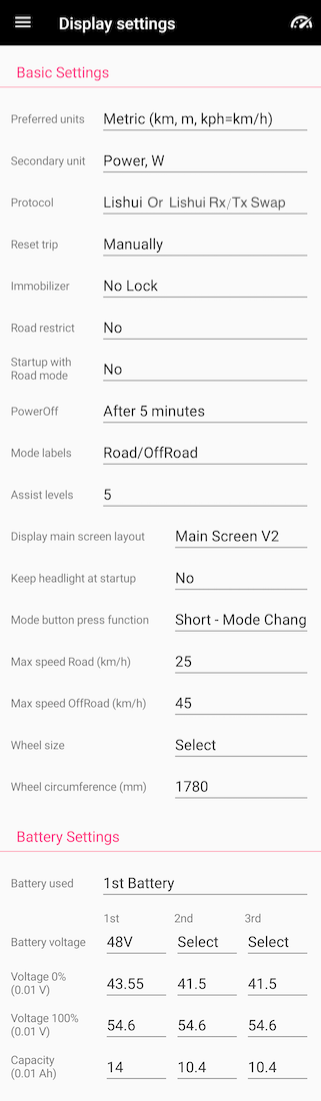

RadRunner EggRider Display settings EggRider V2 Mate X Taiwan 750W settings screenshot

Last update: January 30, 2023
