Rad settingsLink
Accesible from menu Lishui. The display protocol used should be Lishui or Lishui Rx/Tx. For more details, please see Lishui settings page.
For model compatibility, please see rad compatibility list.

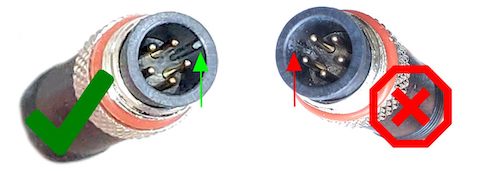

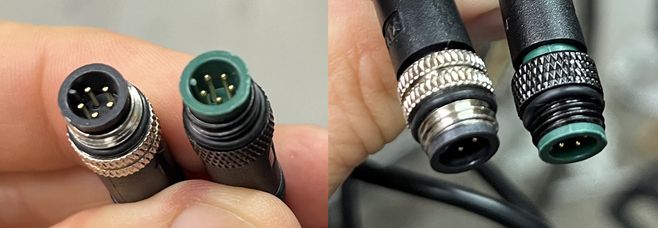

The EggRider Rad version can have green or black connector but it is important to be a screw connector as shown in the pictures below.

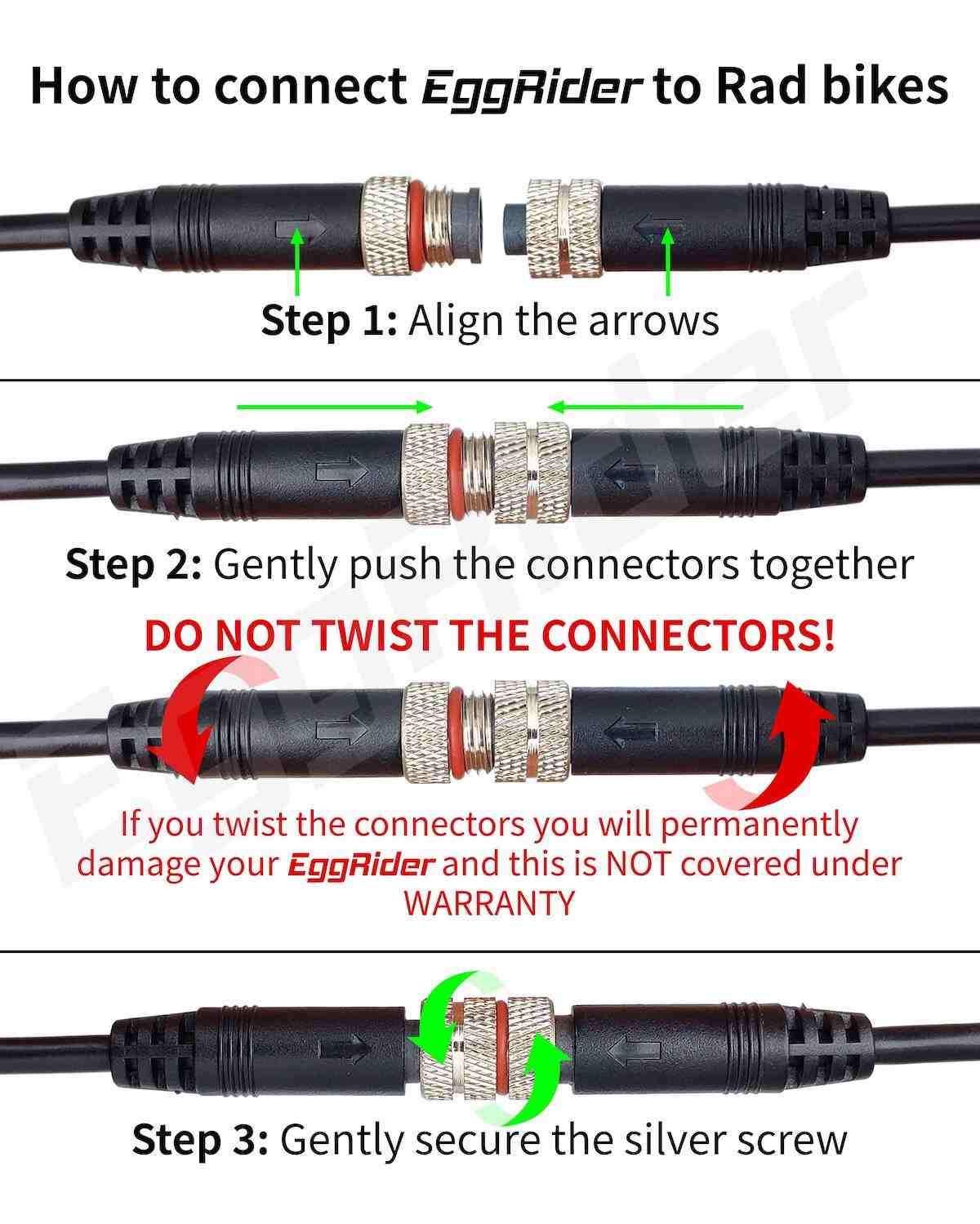

How to connect EggRider display to Rad bikesLink
Attention
If speed shows --.- km/h on EggRider display, please see section protocol detection.
Example SettingsLink
EggRider offers different type of strategies depending on your needs:
Attention
Ensure you adjust the Current limit to match your controller's specifications, which are usually listed on the controller label.
-
If you want to increase the speed limit above 41 km/h, you can change wheel size to 16" on the Lishui settings page. This change will affect all speed limits.
-
If speed measurements don't seem to be correct please use wheel circumference from Display settings page to adjust.

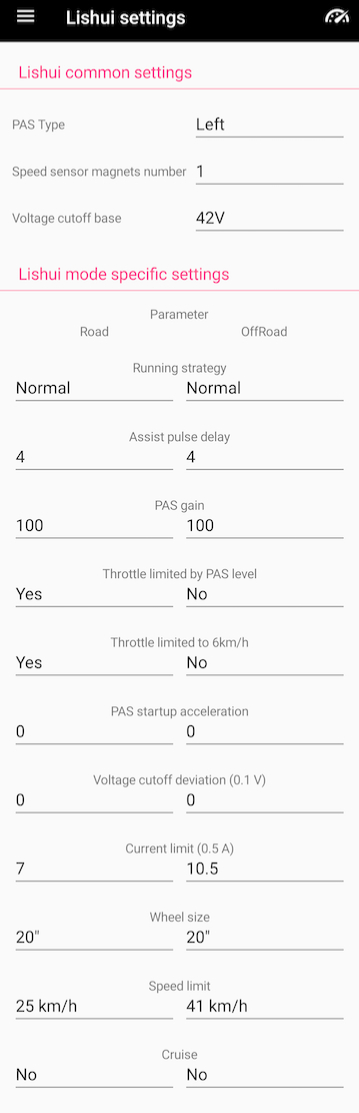

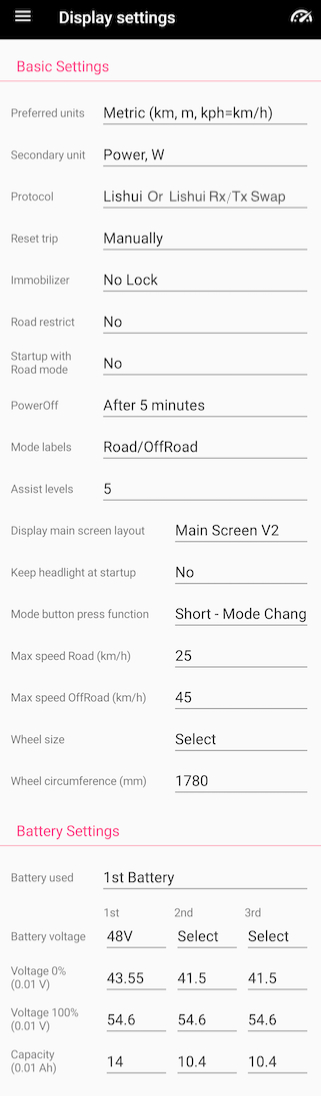

Rad Runner configuration exampleLink

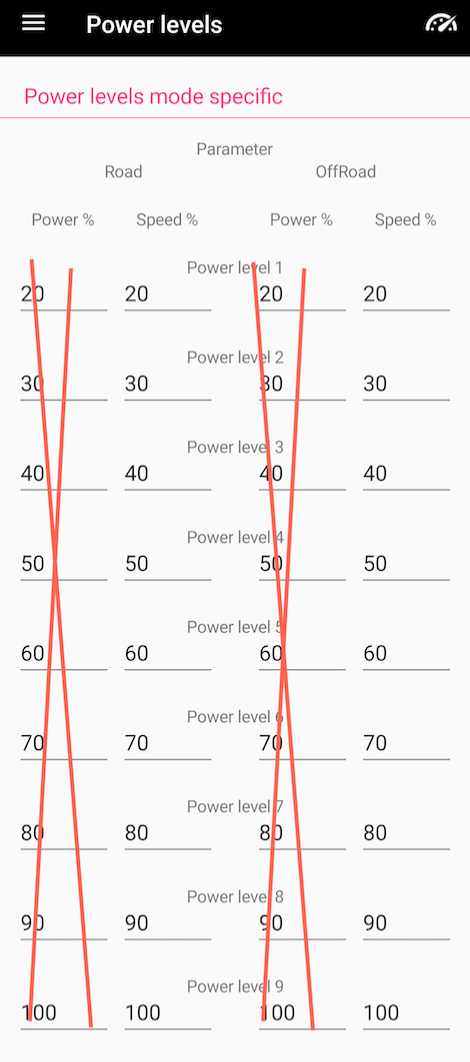

Please keep in mind that when Running strategy is set as Normal only the Speed % values are used.
| Power Levels | Display | Lishui |
|---|---|---|
 |  |  |

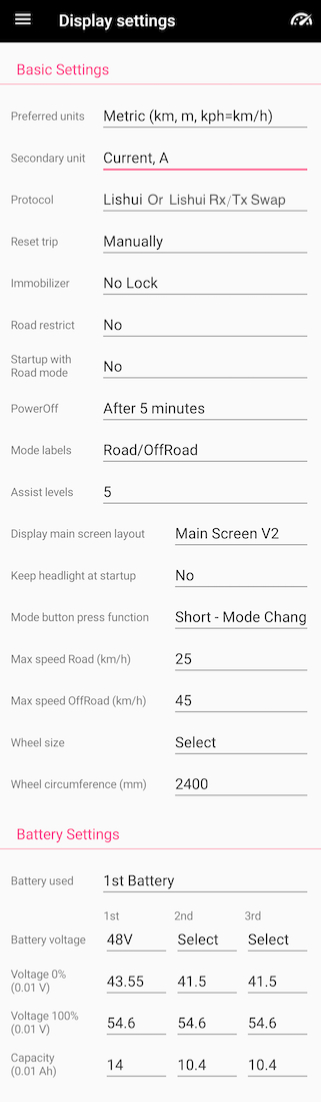

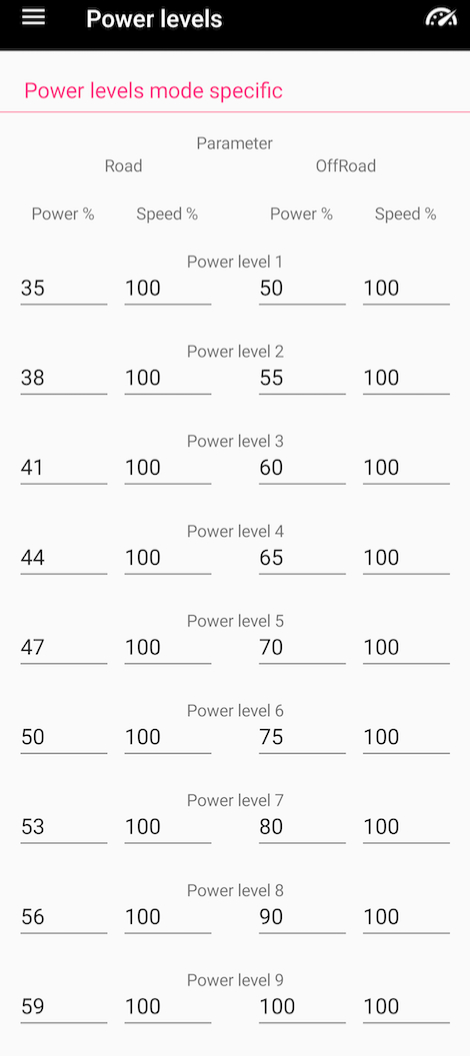

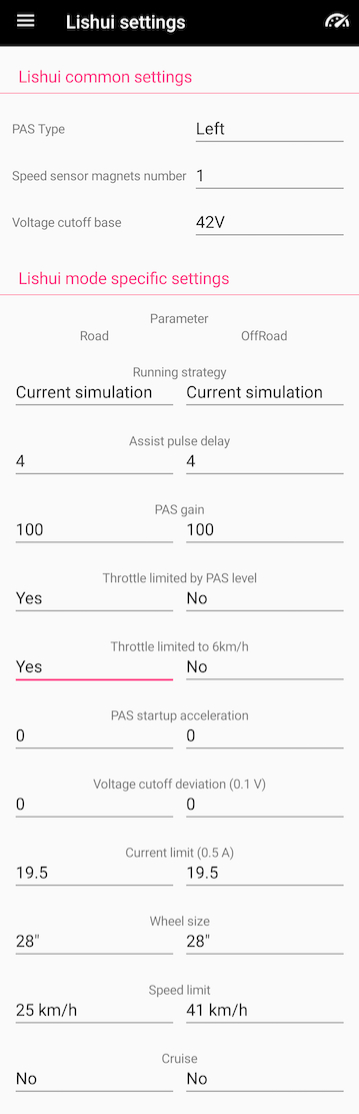

Rad Wagon configuration exampleLink
- If Power % and Current limit are set too low, the controller might use a higher default value than the calculated value (Power % / 100 * Current limit).
- If set too high, the controller might use a lower default value.
- The limits can vary from controller to controller so you might have to find the limits that work for you.
- Speed limits for "Power levels" are taken from the EggRider display settings.
| Power Levels | Display | Lishui |
|---|---|---|
 |  |  |
