EggRider Display firmware update using iPhoneLink

Display firmware is available in the downloads area or by selecting Downloads in the About page of the EggRider app.

The recommended app for updating the display firmware is nRF Connect. Alternatively you can use nRF Toolbox.

Updating using nRF Connect (New Version)Link

Steps to update using nRF Connect (Old Version)Link

1. Backup your settings and ODO stats
2. Download nRF Connect app
3. See below iOS nRF Connect screenshots, highlighted in red where to click

4. Put EggRider in Update mode. With EggRider Display off, press Up+Power until it shows EggRider Updater screen



5. On your phone open EggRider app

6. Go to About page
7. Select Downloads section (goes to Bitbucket.org)
8. Select latest eggrider_fw_v (firmware version)
9. Select Open in "nRF Connect"
10. Look for EggRiderBL in the Scanner tab
11. Select Connect (if the connection fails get closer to the display and try again)
12. Select DFU
13. On My firmwares page select + from the top right corner
14. Choose the file downloaded at step 7
15. Select Done from top right corner
16. On My firmwares page select the firmware
17. Select Play button
18. Wait until display restarts to the main screen
19. Make sure the new firmware version is shown on the Search page
    1. If version is not shown correctly, disconnect from the display
    2. Pull down to refresh the display list, you should see the new version.
20. Connect with the EggRider app to see that the update alert disappears.

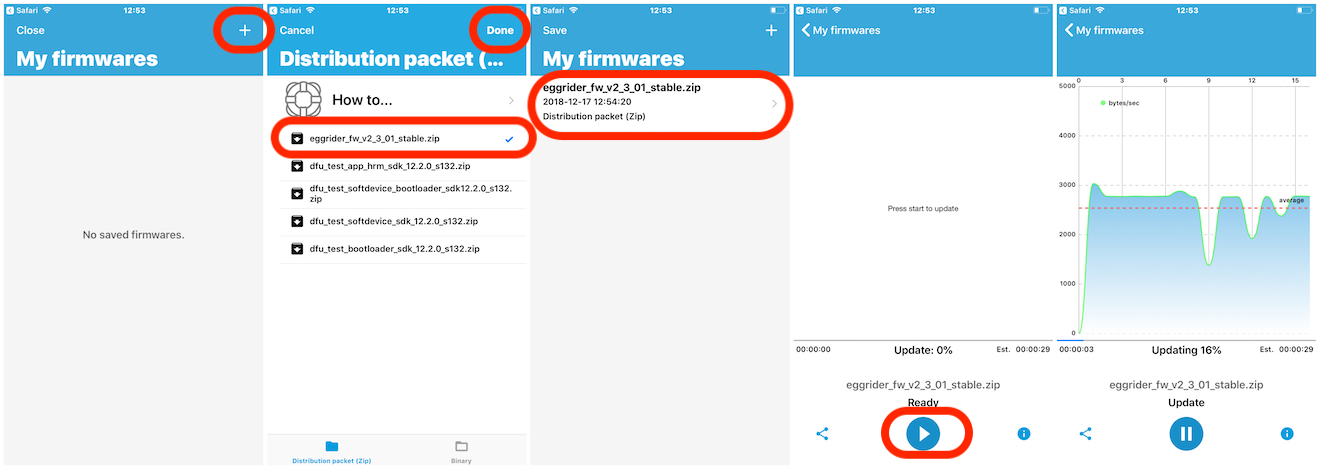

iOS nRF Connect screenshots exampleLink
