EggRider Display Firmware UpdateLink

Attention

It is highly recommended to ensure you update your firmware to the latest available when you receive your EggRider.

Please make sure to put EggRider display in update mode when doing the update procedure!
With EggRider Display off, press Up+Power until it shows EggRider Updater screen

EggRider V2 EggRider C1
"EggRider V2 update screen" "EggRider C1 firmware update screen"

Update instructions for versions V2.5.xx +Link

Attention

Due to significant changes in core functionalities, we recommend following the steps below for a smooth transition. We have tested the update from firmware version v2.4.11 and above. While it should also work on older firmware versions, we recommend resetting to default settings afterward for optimal performance.
To access all features, please ensure you are using the update alongside app version v2.5.03 or later.

  • Backup your settings and ODO stats (in rare cases they can be lost).
    To access the second screen (stat page), press the M button for more than 3 seconds.

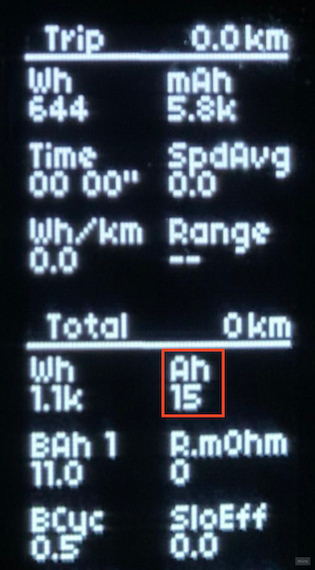

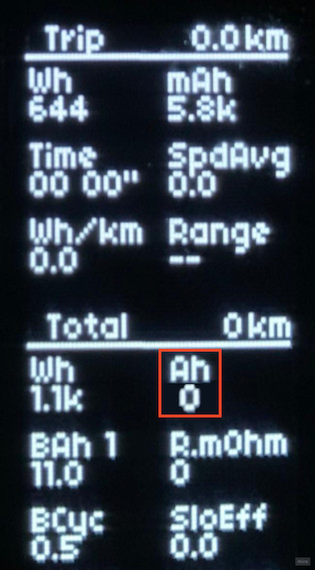

    Before After
    "EggRider v2 Odo settings before firmware update" "EggRider v2 Odo settings after firmware update"
  • Check if any of the ODO Total KM, Wh or Ah are different than before, as highlighted in the picture above. If so we recommend to reset ODO from the Display Advanced settings.

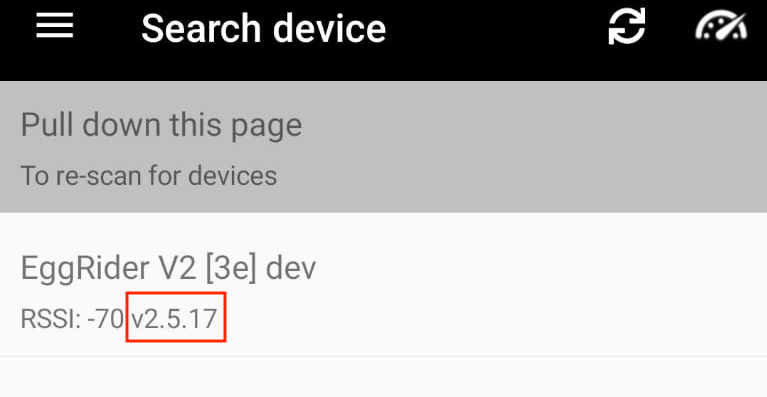

  • To use new features, such as changing the Display Main Screen layout (available with app version v2.5.03 or later), ensure to rescan for the device after updating. If already connected, disconnect and reconnect. Then, verify that the version shown is correctly (e.g. v2.5.17) as shown in the picture below.
    EggRider V2 version in search page
  • If you need to reset the ODO, you can use the ODO offset feature in the Display Advanced Settings by entering the previous ODO distance.
  • We recommend verifying your battery specifications. In the Battery Voltage 100% setting, you now need to enter the full charge voltage for better battery estimation. For example, a 48V battery should be set to 54.6V. If you're unsure, you can use the predefined selections for guidance. See Battery Settings for more info.
    For Capacity (Ah), you may find that a slightly lower value than the manufacturer’s stated capacity provides more accurate results. This is because battery performance degrades over time, and in some cases, the voltage cutoff is set higher.

How to update EggRider display?Link


Last update: February 27, 2025
